TwoTrees TTC 450 CNC Router Machine
Product Details

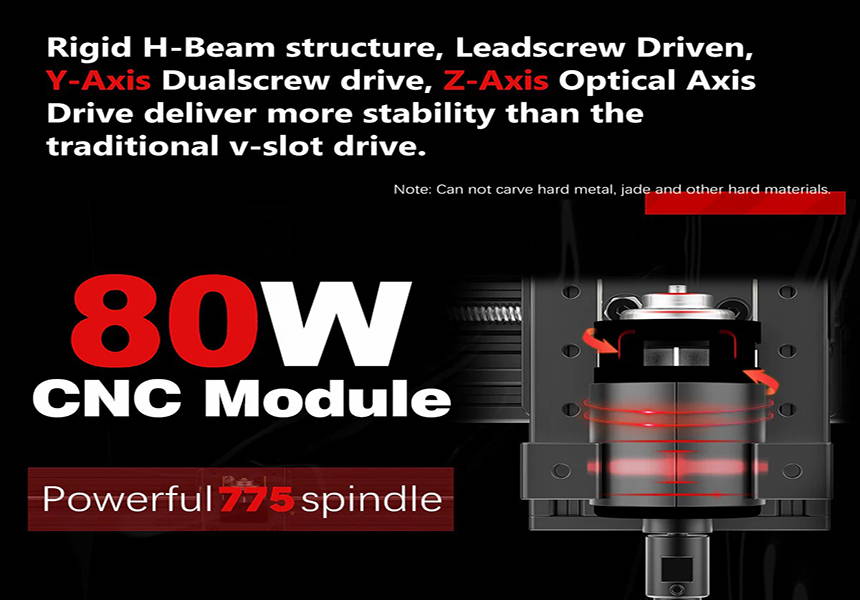

High Speed Spindle
Standard 80W spindle reach 7000rpm,upgraded spindle 500W reach 12000rpm, quiet and fast heat dissipation, making the engraving smoother.
Large Working Area

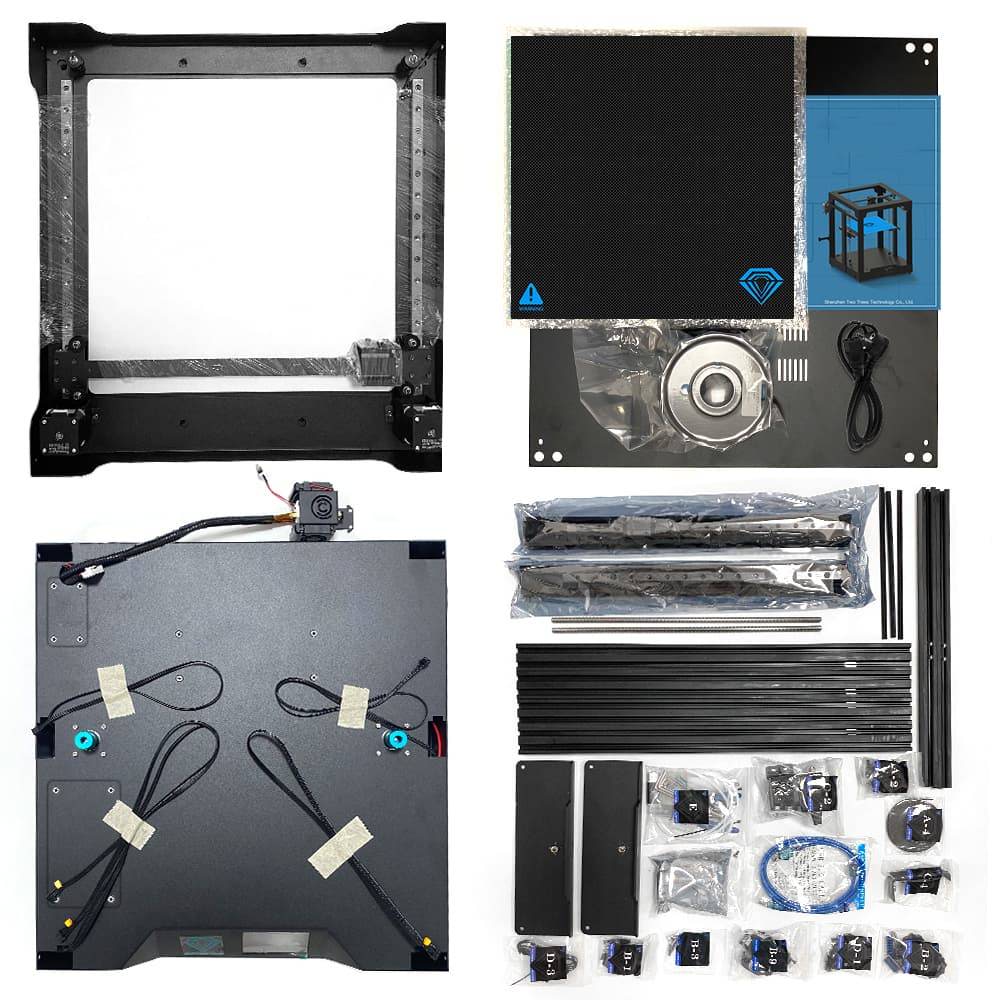

Large working area 460x460x80mm, 70% pre-assembled, meet most engraving needs, commercial batch manufacturing and artistic design, unlimited engraving.
Strong and Durable Construction
The metal frame is equipped with high-quality screw rods for smoother and more stable operation.
Support Offline Engraving
Connect and control it easily, supports operation via WIFI, TF card and USB connection.
Accurate to the Millimeter
Limit stops on all axes for high engraving accuracy 0.01mm,instant stop switch for safe operation.

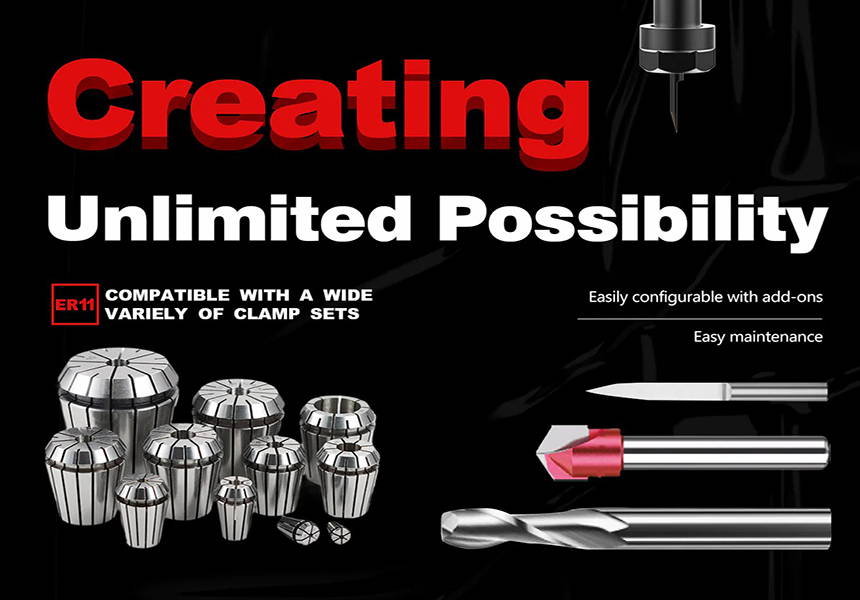

Wide range of applications
Creates 2D and 3D works on a wide range of materials, including plastics, acrylic, industrial plastics, metals and more.
Tech Specs
| Model No. | TTC450 |
| Color | Black |
| Machine material | Aluminum Profile + Plastic |
| Leadscrew Size & Type | T8 2mm pitch, 4mm lead 5 start acme lead screw |
| Height adjustment method | Lifting module adjustment (automatic) |
| Machine size | 782*670*390mm |
| Engraving size | 460*460*80mm |
| XY axis positioning accuracy | 0.1mm |
| Stepper motor | A4988, 1.3A / 17HS8401S, NEMA23 20mN.m |
| Engraving precision | 0.01mm |
| Engraving speed | 800mm/min |
| Spindle | 80W,8000RPM |
| Engraving method | USB connection\APP\wireless computer WEB side\offline |
| Carving material | Plastic, soft aluminum, wood, acrylic, PVC, PVB and other soft materials |
| Software recognition format | NC, DXF, BMP, JPG, PNG, GCODE |
| Continuous working hours | ≤6 hours |
| Engraving mode | Graphic engraving, file engraving, scan engraving, contour engraving, pixel engraving |

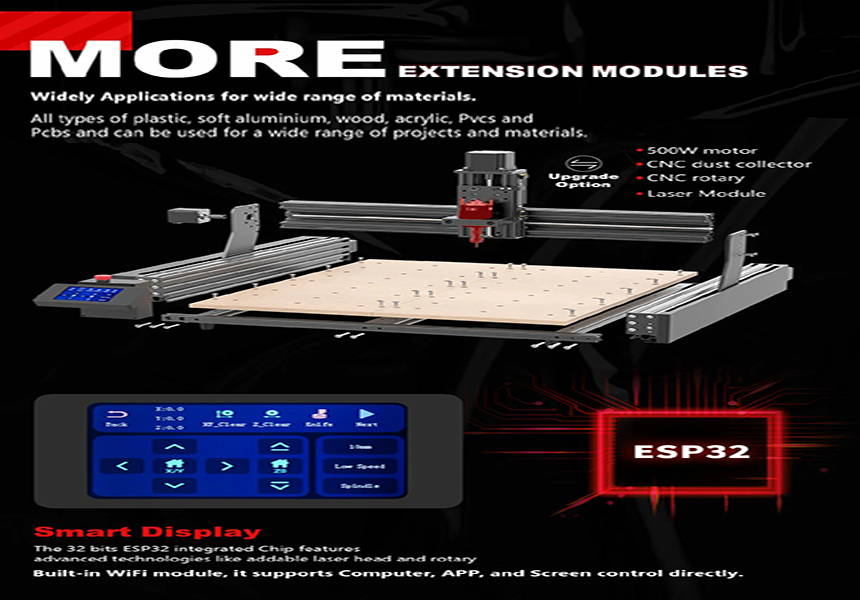

| Control panel | ESP32 32-bit main control board |
| language | Chinese, English, Italian, French, German |
| Package Size | 720*330*300mm |
| Package weight | 20KG |
| Power Supply | 24V 5A 120W |
| Operating System | Windows, MAC |
| Support Software | Laser GRBL: open source free software, support Win XP/Win 7/Win 8/Win 10 system |
| LightBurn: paid software, supports Win XP/Win 7/Win 8/Win 11 system, Mac system; | |
| Working Environment | Temperature 5-40 degrees Celsius, humidity 20-60%RH |
| package information
| Machine (TTC450)
|
